In the high-stakes environment of modern manufacturing, an industrial cable assembly functions as the critical nervous system of a facility. Unlike standard consumer electronics cables, these assemblies are engineered to withstand extreme mechanical stress, chemical exposure, and electromagnetic interference (EMI). Whether powering a robotic arm on an automotive assembly line or transmitting high-speed data in a precision medical device, the integrity of the cable assembly determines the reliability of the entire system.
Understanding the nuances of industrial cable assembly—from material selection to IPC-standard manufacturing—is essential for engineers and project managers tasked with maintaining uptime and operational safety.
An industrial cable assembly is a group of wires or cables arranged into a single unit to transmit electrical power or data signals. While often confused with a "wire harness," there is a technical distinction. A wire harness typically features a basic outer sheath (like bellows or tape) to keep wires organized. In contrast, a cable assembly is encased in a heavy-duty outer sleeve—often overmolded—to provide robust protection against environmental factors such as moisture, heat, and abrasion.
To appreciate the complexity of these components, one must look at the internal architecture:
The production of an industrial-grade assembly is a precision-driven process that goes far beyond simple cutting and crimping. Each step is governed by strict engineering tolerances.
The process begins with determining the environmental constraints. Will the cable be subject to "continuous flex" in a cable track? Does it need to be submersible? For instance, high-flex applications require a higher strand count in the conductor to prevent metal fatigue over millions of cycles.
Automated machinery ensures that cables are cut to exact lengths. Precision stripping is vital; even a tiny nick in the conductor can lead to a "hot spot" or signal failure under industrial loads.

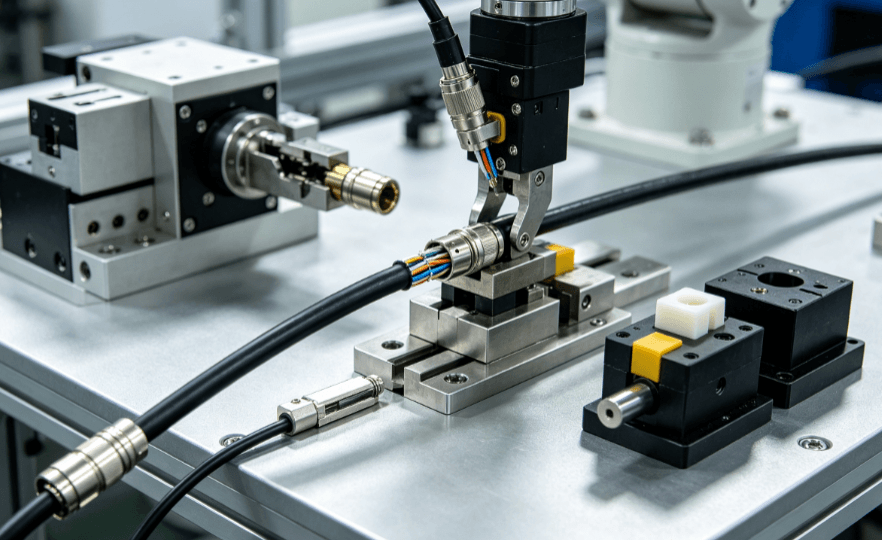

This is the most critical mechanical phase. Connectors—ranging from standard RJ45s to heavy-duty M12 or circular MIL-spec connectors—are attached. Manufacturers often use automated crimping presses with "crimp force monitoring" to ensure every connection meets the required pull-out force.
For industrial environments, overmolding provides a permanent, liquid-tight seal between the cable and the connector. This process involves injecting molten resin (typically TPU or PVC) into a mold cavity, creating a strain relief that prevents the wires from pulling out of the terminals.
Before leaving the factory, assemblies undergo rigorous testing:
Different industries demand specialized configurations. Choosing the right "type" depends on the physical layout and the nature of the signal being transmitted.
| Type | Key Characteristics | Common Use Cases |
|---|---|---|
| Power Cable Assemblies | High gauge wire (low AWG), heavy insulation. | Motors, generators, and heavy machinery. |
| Control & Signal | Multi-conductor, often shielded to prevent crosstalk. | PLC wiring, sensors, and limit switches. |
| Industrial Ethernet | Cat5e, Cat6, or Cat7 with ruggedized M12 or RJ45 connectors. | Factory automation networks (Profinet, EtherCAT). |

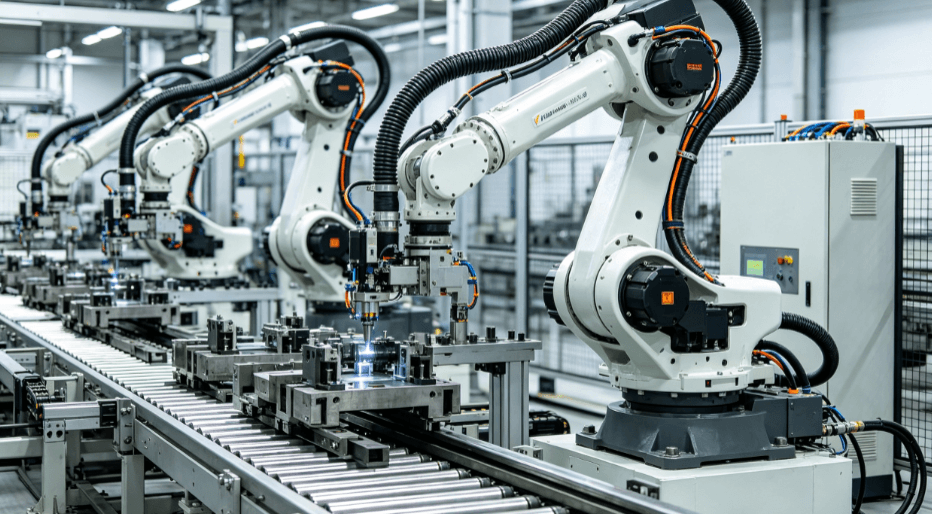

| High-Flex/Robotic | Specialized "torsion-resistant" construction. | 6-axis robotic arms and moving gantries. |

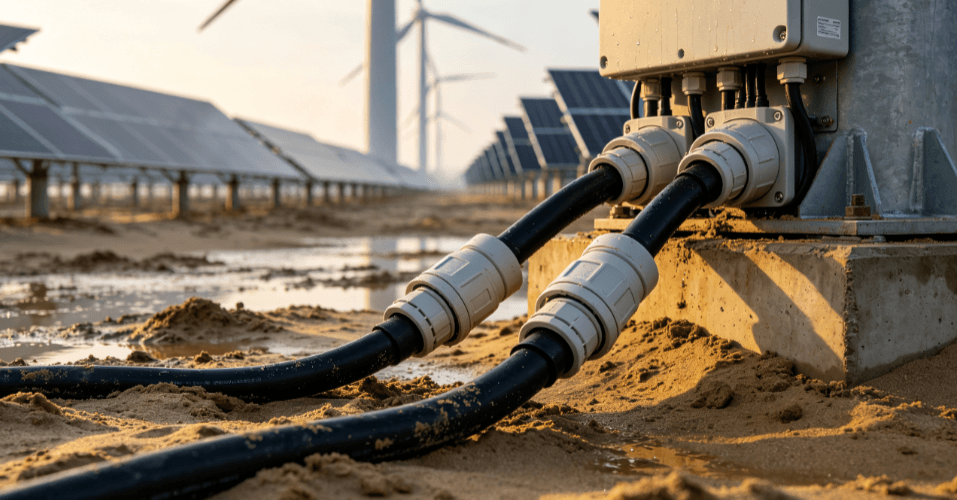

| Waterproof/IP-Rated | Sealed with O-rings and overmolding (IP67/IP68). | Food processing, marine, and outdoor signage. |
Specialized providers, such as those found in Soar Cable's specialized collections, offer a range of these configurations, specifically targeting M-series connectors and custom-molded waterproof solutions that are staple requirements in modern automation.
The versatility of industrial cable assemblies allows them to serve diverse sectors, each with its own set of technical hurdles.
When evaluating an industrial cable assembly, adherence to international standards is the primary indicator of quality and safety.
The selection and implementation of an industrial cable assembly are not merely logistical tasks; they are engineering decisions that impact the longevity and safety of industrial infrastructure. By focusing on high-quality materials, precise manufacturing workflows, and strict adherence to IPC standards, organizations can significantly reduce downtime and maintenance costs. As industries move toward Industry 4.0, the demand for more complex, shielded, and high-speed assemblies will only continue to grow, making the role of the specialized cable manufacturer more vital than ever.
